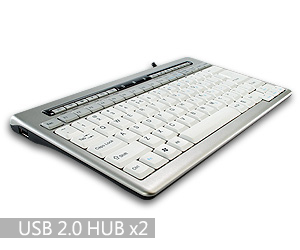

PRODUCTS > KEYBOARD > Multimedia > K9700/01M


MULTIMEDIA SERIES

Products Features

‧ USB 2.0 hub x 2

‧ V9 Type keytop. (Scissors Keycap)

‧ Multilingual compatible.

‧ Mini layout.

‧ 3 Media hot Keys.

‧ 3 Internet hot Keys.

‧ 6 Windows hot Keys.

‧ Embeded metal plate design.



Function Key

Open : Open a document in the active application that provides this feature.
Save : Save the document currently open and in focus. The target application should provide this feature.
Print : Prints the document currently open and in focus. The windows print dialog box is displayed for you to specify your print requirement.
Cut : Cut out the selected item.
Copy : Copy the selected item.
Paste : Paste The previously cut out or copied item at the cursor position.
Play/Pause : Play or pause music or a movie. Once paused, press this key again to resume playing.
Stop : Stop the music or movie that is playing.
Mute : Turn off the sound. Press again to turn the sound back on.
Internet Browser : Press this button to launch default internet browser.
My Favorite : Open the internet explorer favorites pane. This is where you can store shortcuts to frequently used files, websites or other items for easy access.
Email : Start the default e-mail program. If you are not sure what the default e-mail program Is, press this key to find out.



Products Specification

Key numbers

82 / 83 / 84 / 86

Pitch

19.05mm

Total height

11mm

Travel

2.7 ± 0.4mm

Multimedia hot key

Internet hot key

Windows hot key

Power sleep key

Scroll, click, and zoom

USB 2.0 hub

Embeded metal plate design

Interface

USB

Dimension

305(L) x 165(W) x 21(H)mm

Weight

492 ± 20g
