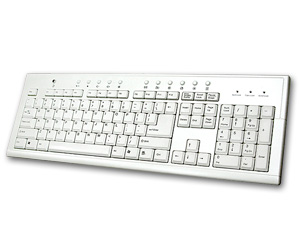

PRODUCTS > KEYBOARD > Multimedia > K7300M

MULTIMEDIA SERIES

Products Features

‧ V6 Type keytop. (Slim Keycap)

‧ Multilingual compatible.

‧ 95/98 standard layout.

‧ 5 Media hot keys.

‧ 6 Internet hot keys.

‧ 1 Power sleep key.



Function Key
Sleep : User can put the system into sleep mode, if the PC supports power management. The user can put the computer to sleep by press this key. It will protect data and saving energy. To press the power key or sleep key again will a wake the computer (In some case, press any key will a wake computer also). If power management is not enabling, this key will not work. The "Sleep" hot key functionality is only available if your system supports power management (ACPI), all the peripherals (e.g. VGA, Sound Card…) require to compatible with the power management also.
Play/Pause : Play or pause music or a movie. Once paused, press this key again to resume playing.
Stop : Stop the music or movie that is playing.
Volume Down : Hold down this key to quick decrease the volume.
Volume Up : Hold down this key to quick increase the volume.
Mute : Turn off the sound. Press again to turn the sound back on .
Email : Start the default e-mail program. If you are not sure what the default e-mail program Is, press this key to find out.
My Favorite : Open the internet explorer favorites pane. This is where you can store shortcuts to frequently used files, websites or other items for easy access.
Back : Go back to the previously viewed item in programs that support the "Back" command, such as a web browser.
Internet Browser : Press this button to launch default internet browser.
Forward : Go to the next item-if it was previously viewed in the same session-in programs that support the "Forward" command, such as a web browser.
Refresh : Update the information on an active web page or the contents of a particular window.


Products Specification

Key numbers

104 / 105 / 106 / 107 / 109

Pitch

19mm

Total height

15.75mm

Travel

3.0 ± 0.2mm

Multimedia hot key

○

Internet hot key

○

Windows hot key

╳

Power sleep key

○

Scroll, click, and zoom

╳

USB 2.0 hub

╳

Embeded metal plate design

○

Interface

PS2 / USB

Dimension

460(L) x 160(W) x 22(H)mm

Weight

442 ± 20g
