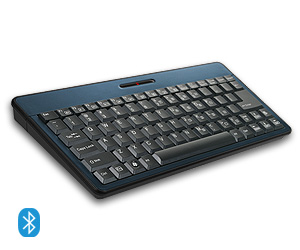

PRODUCTS > KEYBOARD > Wireless & Bluetooth > K7701B

BLUETOOTH SERIES

Products Features

‧ V6 Type keytop. (Slim Keycap)

‧ Multilingual compatible.

‧ Mini layout.

‧ Buletooth 3.0 Technology.

‧ Dual Color Indicator.

     (Bluetooth Piring(Blue) / Battery Low(Red))

‧ Function keys. (6 Media / 3 Internet / 1 Windows)

‧ Operation distance : 8~10m.

‧ By alkaline AAAx2.

‧ Stand-up design.



Products Interpret




Function Key
Mute : Turn off the sound. Press again to turn the sound back on.
Volume Down : Hold down this key to quick decrease the volume.
Volume Up : Hold down this key to quick increase the volume.
Play/Pause : Play or pause music or a movie. Once paused, press this key again to resume playing.
Previous Track : Switch to the previous media track. Press once for each preceding track.
Next Track : Switch to the next media track. Press once for each subsequent track.
Email : Start the default e-mail program. If you are not sure what the default e-mail program Is, press this key to find out.
Internet Browser : Press this button to launch default internet browser.
Search : Open the internet explorer search pane.
My Computer : My computer shows the contents of your floppy disk, hard disk, CD-ROM drive and net work drives. You can also search for and open files and folders, and gain access to options in control panel to modify the computer's settings.


Products Specification

Key numbers

81 / 82

Pitch

15.4mm

Total height

12.3mm

Travel

2.5 ± 0.2mm

Transmission frequency

Bluetooth 3.0

Battery

1.5 AAA x 2

Operation distance

8~10m

Multimedia hot key

○

Internet hot key

○

Windows hot key

○

Power sleep key

╳

Scroll, click, and zoom

╳

USB 2.0 hub

╳

Embeded metal plate design

╳

Interface

USB

Dimension

308(L) × 150(W) × 23.6(H)mm

Weight

331.5 ± 20g
